12V 24V 36V 2CH Universal Garage Door Remote Switch 433Mhz Wide Range Motor Forward and Reverse, 2 Channel Wireless Switch Garage Door keypad Universal Wireless (2X Control 433MHz)

Descriptions:
1. Working Voltage: DC 12V-36V
2. Working Frequency: 433Mhz
3. Max Load: 10A Relay ( have better load not up to 5A)
4. PCB Size:75*58*15mm Case Size :95*62*29mm
5. Serve as: Limit & Wire External Button

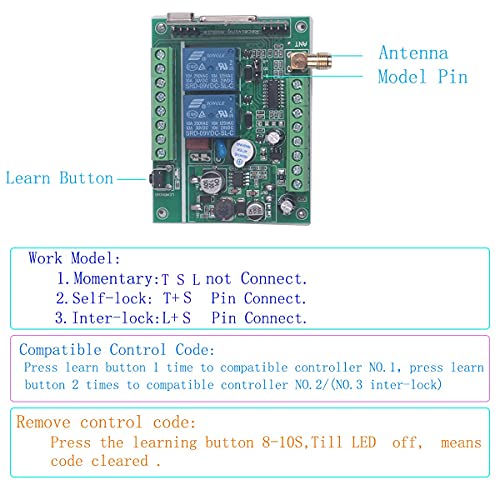

7. Out State: Momentary Latched Adjusted by the Jumper at the Receiver,
8. Working way changed by jumper on pins
Momentary: jumper doesn’t connect any two pins.
Relay: Press and hold -> On; Release -> Off.
Toggle: jumper connects the pin T and pin S.
Relay: Press -> On; Press same button again -> Off·
Latched: jumper connects the pin L and pin S.
Relay: Press -> On; Press other button -> Off.
9. Learning Code :
Learn Method:
Press learn button 1 time to compatible remote Keep watch over NO. 1, press learn button 2 times to compatible remote Keep watch over NO. 2/3 (inter-lock)
10. Clear code :
Connecte to Power, press learn button for 8- 10S, till LED 0FF. the remote controller can’ t Keep watch over the switch
Package Include:
1 x 12V-36V 2CH Switch Receiver(with cover)
2 x Remote Keep watch over Transmitter (Include battery)

🌷【Keep watch over Voltage】 DC 12V-36V,24V,Low volt Keep watch over High Volt Switch 【Relay Load】10A 1V-250V（DC/AC),/10A 250V AC , 10A 125V AC, 10A 30V DC, 10A 28V DC, 10A 12V,Wide Voltage load
🌷【Multi-Serve as Relay switch may also be modified for multi-purpose circuit.Universal many Home or Industry in Circuit product,No wiring required,easy install the switch Keep watch over the electrical circuit,The switch receiver stressed between power and electric appliance.
🌷【Wide Appliance Used】: Led Lamp Lighting switches, wireless monitoring equipment, Power switch, small motor, buzzer, electromagnet, light, electronic power supply equipment，Keep watch over Lighting, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.
🌷【Work model】Self-lock,Momentary,Inter-lock.can change it on your own in relay switch Module Pin
🌷【SIGNAL Stability】the remote Keep watch over adopts technology, stable signal. Signal of the wireless switch can pass through walls, floors and doors, ceaselessly Keep watch over receiver from any place within a reliable distance.
