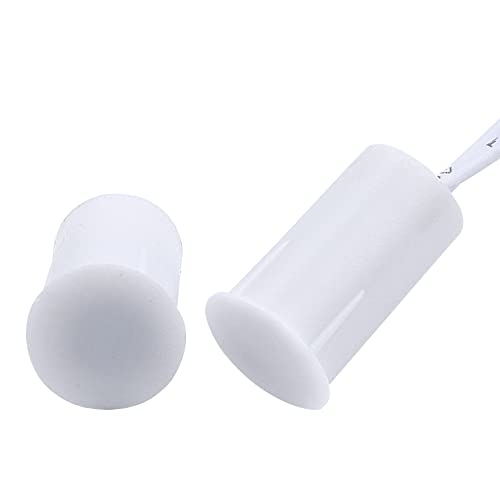

Magnetic Door Switch RC-33 NC Recessed Wired Security Window Door Contact Sensor Alarm White 10 Pair

Installation Instructions

1. Drill installation hole with a diameter of 10 mm.

2. The door and window magnet should be installed at the closed position of the door/window/drawer.

3. The magnet part is installed in the movable door and window. The switch part is installed in the fixed door and window frame. The switch part and the magnet part should be aligned as much as imaginable.

4. The door magnet should be away from the strong magnetic field interference source such as a transformer. In a different way, the working characteristics of the door magnet will be changed and imaginable fallacious actions.

5. The door magnetic switch is a glass-encapsulated switch. When installing, be careful not to use too much force or savage installation, which is easy to damage. If the voltage and current are too large, the switch may also be damaged.

Note

1. The Magnetic Door Switch should be installed in step with the sensing distance;

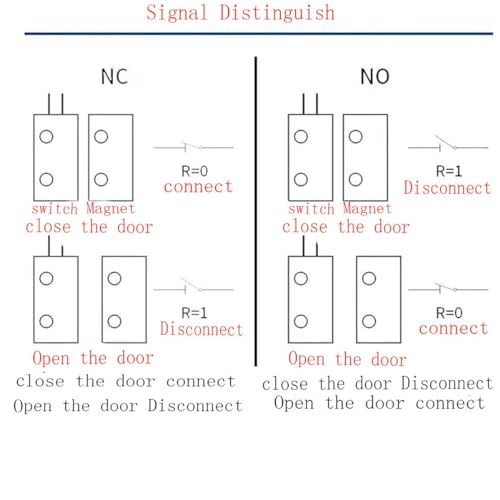

2. It can only provide a switch signal to the device, which cannot directly load the power, nor directly connect the lamp! About Typically Closed and Typically Open

N.C

NC means Typically Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit isn’t conductive ( light off ). When make order, pls check carefully!

Product Name: Magnetic Door Switch Model: RC-33
Contact Type: NC (Typically Closed) Actuation Distance: 18mm ± 5mm Max. Current: 0.5A
Max. Contact Power: 10W Working Voltage: DC0-100V
Each and every Size(Approx): 17 x 10.6mm / 0.67 x 0.42-inch (H*D) Cable Length(Each and every): 25cm / 9.8-inch Material: ABS (Housing) Wire Type: 1007UL#24AWG
Color: White Net Weight: 80g Package Content: 10pcs x Magnetic Door Switch
