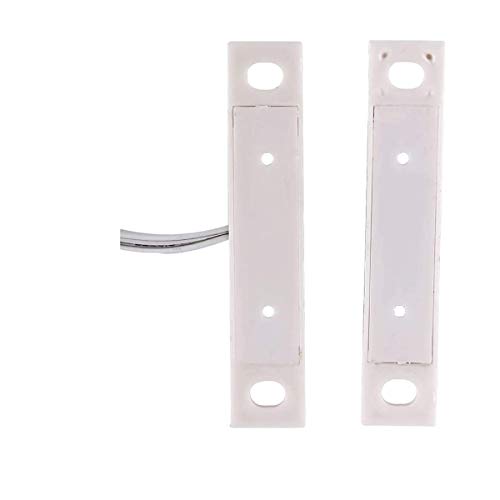

MC-32 NC Surface Mount Wired Security Window Door Contact Sensor Alarm Magnetic Reed Switch White – (6 Sets)

Product description:

Model: MC-32 Magnetic Reed Switch

Feature:

MC-32 Magnetic Reed Switch Alarm door sensor widely used in work with all get right of entry to keep an eye on and burglar alarm systems. Will also be installed in wooden or aluminum alloy doors and windows. White color ABS Material make home great and beautiful.

Specification:

Material: ABS.

Contact Type: NC

Power: 10W.

Current: 0.5A.

Working Voltage: DC100V.

Actuation Distance: 15-25mm.

Wire Type: 1007UL#24AWG.

Hole Diameter: 4mm/0.16 inch.

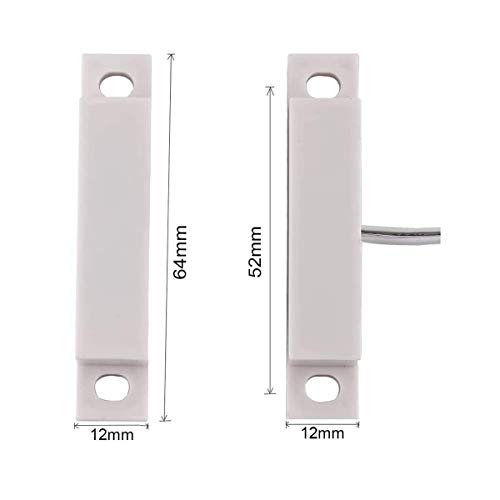

Total Size: 64 x 19 x 13mm/2.52 x 0.75 x 0.51 inch.(lL*W*H)

【Package Included】: 6Sets x MC-32 Magnetic Reed Switch.

Notes:

The load voltage and the maximum load current will have to not exceed the maximum allowable amount of the switch,Impact its service life.

【Risk-Free Guarantee】:

Here with our 90-day money back risk-free purchase guarantee, Refund or Replacement for any quality problem.

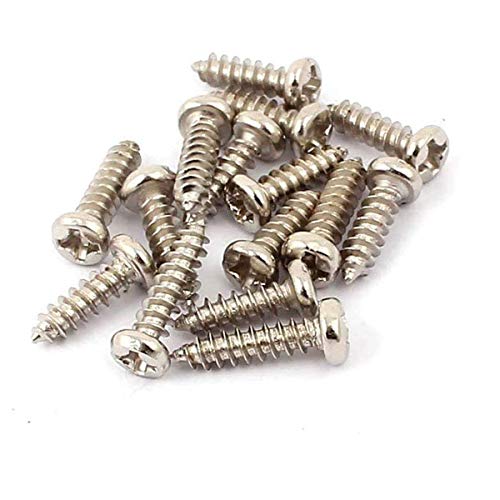

【Package Included】: 6Sets x MC-32 Wired Magnetic Reed Switch.(Mounting screws are includes).
【Function】: The reed switch is an electrical switch operated by an applied magnetic field. Designed to be used with alarm systems. Great to be used in circle of relatives and factory window, door. and so forth.
【Install Distance】 ：MC-32 Wired reed switch Gap between 2 pieces more than 15mm, less than 25mm.White color make home great and beautiful. Anti-fire ABS material.
【Reed Switch】：Important : When the magnet is near it makes connectivity, when the magnet is removed connectivity is broken.Wired magnetic door/windows contact Will also be added to wireless/wired Alarm Systems.(some wireless system has wired zones)
【Switch Type】: NO means generally open: when the magnet separate, the circuit is conductive( light on ); when the magnet together, the circuit isn’t conductive ( light off ), NC means generally closed: when the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit isn’t conductive ( light off ).
