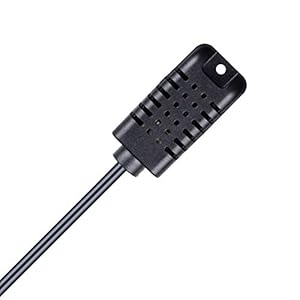

HTMR07-J5 Humidity Sensor Module Temperature Sensor Fit for Dehumidifiers

Specification:
Humidity sensor: polymer humidity resistance
Temperature sensing element: NTC thermistor, 10K+-1%, B worth=3435K+-1%
Power provide: 5V DC+-5%
Power consumption current: 5MA, AX (2MA.AVG)
Measuring range: Humidity: 20%-95%RH, temperature: 0-50 ℃
Measurement accuracy: Humidity: +-3%RH, (25 ℃, 60%RH, input voltage=5V) Temperature: +-1 ℃
Humidity output signal: input voltage=5V
Package:
1x HTMR07-J5 Humidity Sensor Module

HTMR07-J5 Humidity Sensor Module Temperature Sensor Have compatibility for Dehumidifiers
Excellent anti-interference talent and stable performance. Please ensure that the model and specifications match your dehumidifier before putting an order!
Have compatibility for warehousing, tobacco, pharmaceutical and other industries
Universal appropriate for temperature and humidity meters, humidification equipment, dehumidification equipment, prime-end air conditioners and other products
The curve of the resistance worth of the humidity resistance element changing with the relative humidity is converted into a linear voltage output during the conversion circuit
