HFeng IP68 Waterproof Outdoor Door Access Control System Kit RFID Access Control Keypad Touch Panel + 180KG/350lbs Electric Magnetic Lock + Power Supply +10pcs Keyfobs

Product Specifications

Access Keep watch over Keypad
User capacity: 3000
Material: ABS top quality material
Panel: touch screen panel

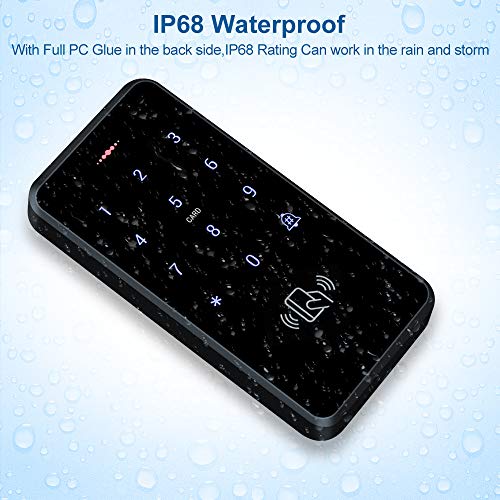

Waterproof level: IP68 waterproof, Can also be installed outdoor
Working frequency: 125KHz
Card reading type: Reinforce EM compatible card
Card reading distance: 0-10CM
Identification method: card, password, card + password
Backlight: has blue backlight
Doorbell button: Reinforce wired doorbell
Wiegand signal: WG26/34 input/output
Can set management card: yes
Working voltage: DC 12V
Working current: ≤ 30mA
Door opening time: 0-255 seconds
Working temperature: -20 ° C ~ 70 ° C
Working Humidity: 20% ~ 90%

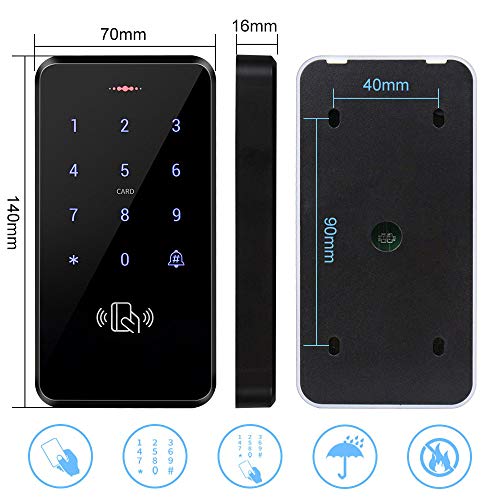

Product size: 140*70*16mm

180KG Magnetic lock
Material: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Suitable for door: metal, wooden, glass door
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: locked when power on, unlocked when power off
Waterproof: Yes. Can also be install outside

Power Supply
Material: stell
AC input: Standard AC100V-260V / 50-60HZ
DC output: DC12V/ 3 A
Time delay: 0-15 seconds adjustable.
Dimension: 140X67X33mm( L/W/H )

Door Exit Button
Material: Hard Plastic
Maximum Power Rating: 36V DC 3A—5A output
Reinforce both NC Mode (Fail Secure Mode) & NO Mode (Fail Protected Mode)
Dimension: 86X86MM

10* RFID Keyfobs
Material: ABS
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.

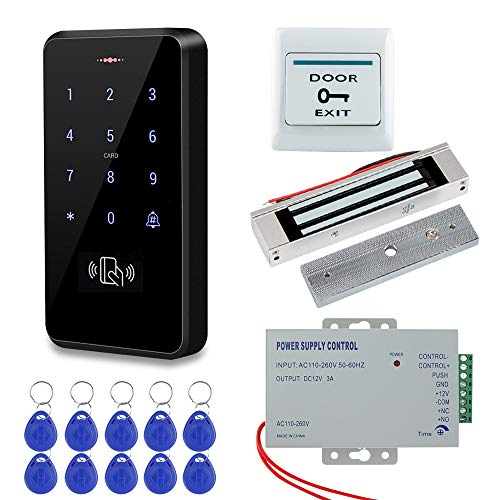

Package Including
1x RFID access Keep watch over keypad
1x 180KG Electric magnetic lock
1x Power supply
1x Exit button
10x RFID blue keyfobs

❤ Reinforce 3000 user capacity. Reinforce RFID Card, password, RFID card + password to open the door. Has backlight, work indicating light, very convenient to use even at dark.
❤ Made of top quality, touch screen panel. The access Keep watch over keypad is IP68 waterproof, can be utilized outdoor. Has a WG26/34 interface and door bell button.
❤ NC type lock, holding force 180/350lbs. The door will be locked when power on, unlocked when power off. Very suitable for wooden door, metal door, glass door.
❤ Working with DC12V system, very easy to install. Don’t want to connect to computer. You’ll program the RFID cards or password on the device directly.
❤ Package including access Keep watch over keypad + power supply + 180KG electric magnetic lock + door exit button +10pcs Keyfobs.
