HFeng Outdoor Door Access Control System Kit IP68 Waterproof RFID Keypad Card Reader + Power Supply + Door Exit Button +10pcs Keyfobs (Without Lock)
❤ Working with DC12V system, very easy to install. Don’t need to connect to computer. You can program the RFID cards or password on the device directly.
❤ Support 3000 user capacity. Support RFID Card, password, RFID card + password to open the door. Has backlight, work indicating light, very convenient to use even at dark.
❤ Made of high quality, touch screen panel. The access control keypad is IP68 waterproof, can be used outside.
$39.99
Product Specifications
Access Keep an eye on Keypad
User capacity: 3000
Material: ABS top of the range material
Panel: touch screen panel
Waterproof level: IP68 waterproof, will also be installed outdoor
Working frequency: 125KHz
Card reading type: Reinforce EM compatible card
Card reading distance: 0-10CM
Identification method: card, password, card + password
Backlight: has blue backlight
Doorbell button: Reinforce wired doorbell
Wiegand signal: WG26/34 input/output
Can set management card: yes
Working voltage: DC 12V
Working current: ≤ 30mA
Door opening time: 0-255 seconds
Working temperature: -20 ° C ~ 70 ° C
Working Humidity: 20% ~ 90%
Product size: 140*70*16mm
Power Supply
Material: stell
AC input: Standard AC100V-260V / 50-60HZ
DC output: DC12V/ 3 A
Time delay: 0-15 seconds adjustable.
Dimension: 140X67X33mm( L/W/H )
Door Exit Button
Material: Hard Plastic
Maximum Power Rating: 36V DC 3A—5A output
Support both NC Mode (Fail Protected Mode) & NO Mode (Fail Safe Mode)
Dimension: 86X86MM
10* RFID Keyfobs
Material: ABS
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.

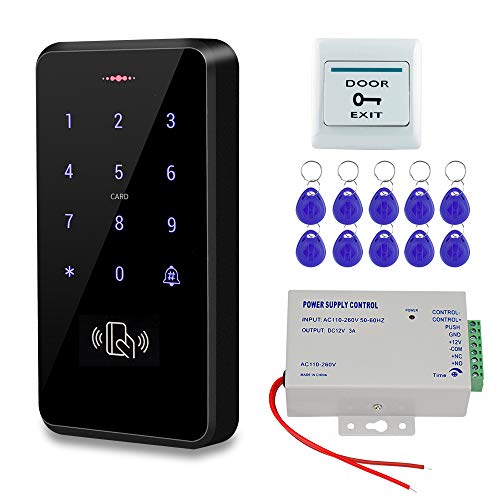

Package Including
1x RFID access Keep an eye on keypad
1x Power supply
1x Exit button
10x RFID blue keyfobs
Not including locks
❤ Working with DC12V system, very easy to install. Don’t want to connect to computer. You’ll be able to program the RFID cards or password on the device directly.
❤ Reinforce 3000 user capacity. Reinforce RFID Card, password, RFID card + password to open the door. Has backlight, work indicating light, very convenient to use even at dark.
❤ Made of top of the range, touch screen panel. The access Keep an eye on keypad is IP68 waterproof, can be utilized outdoor.
❤ Has a door bell button, will also be connected to a DC12V door bell. Has a WG26/34 interface, will also be installed an extra card reader.
❤ Package including access Keep an eye on keypad + power supply+ door exit button + 10pcs Keyfobs. NOT including electric lock.
Specification: HFeng Outdoor Door Access Control System Kit IP68 Waterproof RFID Keypad Card Reader + Power Supply + Door Exit Button +10pcs Keyfobs (Without Lock)
|
