HFeng RFID Access Control System Kit Outdoor IP68 Waterproof Access Control Keypad + NC Fail Safe Electric Strike Locks + DC12V Power Supply + 10pcs 125KHz EM4100 Keyfobs Cards

Product Specifications

Access Regulate Keypad
User capacity: 3000
Material: ABS top quality material
Panel: touch screen panel
Waterproof level: IP68 waterproof, will also be installed outdoor
Working frequency: 125KHz
Card reading type: Beef up EM compatible card
Card reading distance: 0-10CM
Identification method: card, password, card + password
Backlight: has blue backlight
Doorbell button: Beef up wired doorbell
Wiegand signal: WG26/34 input/output
Can set management card: yes
Working voltage: DC 12V
Working current: ≤ 30mA
Door opening time: 0-255 seconds
Working temperature: -20 ° C ~ 70 ° C
Working Humidity: 20% ~ 90%
Product size: 140*70*16mm

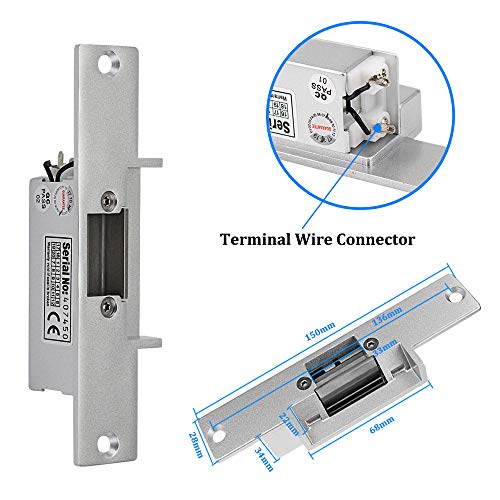

Electric Strike Lock
Material: stainless steel
Working Voltage: DC12V+/- 10%
Working Current: 110mA-250mA
Performance Testing: 1000000 time aging test
Dimension: 150*28 mm
Opening Mode: 90 degree swinging door
Secure Mode: NC type = fail Secure type ( Locked when power on, unlocked when power off )
Suitable for wooden door, metal door

Power Supply
Material: stell
AC input: Standard AC100V-260V / 50-60HZ
DC output: DC12V/ 3 A
Time delay: 0-15 seconds adjustable.
Dimension: 140X67X33mm( L/W/H )

Door Exit Button
Material: Hard Plastic
Maximum Power Rating: 36V DC 3A—5A output
Beef up both NC Mode (Fail Secure Mode) & NO Mode (Fail Secure Mode)
Dimension: 86X86MM

10* RFID Keyfobs
Material: ABS
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.

Package Including
1x RFID access Regulate keypad
1x Electric strike lock
1x Power supply
1x Exit button
10x RFID blue keyfobs

❤ Beef up 3000 user capacity. Beef up RFID Card, password, RFID card + password to open the door. Has backlight, work indicating light, very convenient to use even at dark.
❤ Made of top quality, touch screen panel. The access Regulate keypad is IP68 waterproof, can be utilized out of doors. Has a WG26/34 interface and door bell button.
❤ NC type (fail Secure type) strike lock, the door will be locked when power on, unlocked when power off. Very suitable for wooden door, metal door.
❤ Working with DC12V system, very easy to install. Don’t wish to connect to computer. You’ll be able to program the RFID cards or password on the device directly.
❤ Package including access Regulate keypad + power supply + electric strike lock + door exit button +10pcs Keyfobs.
