IP68 Waterproof Universal 12V 24VDC Metal Case Digital Wired Keypad for Garage Door, Gate Opener and Access Control Systems

Important Note:
★The Supreform digital metal case wired keypad is universal for your existing garage door opener & gate opener.
★You’ll be able to attach it to the opener directly if your garage door/gate opener has a terminal for connecting a universal normal open dry contact wall push button.
★If the opener is intended for use with the dedicated wall console, then you wish to have to open the wall console and solder the output wires to the PCB of the wall console. In this situation, you should have the skill of soldering. You’ll be able to send the photo of the PCB to us, and we will be able to draw a wiring diagram for you.
★The card type which can be utilized with the keypad is 125KHz EM-ID card.

1.Product Description:
The keypad is designed for outside use with an extra high protection degree IP68.
The keypad will also be powered by wide range input voltage 12-24VDC.
Backlight of the keys makes it’s easy to operate at night.
The output delay time of the relay is adjustable from 0.02 second to 99 seconds.

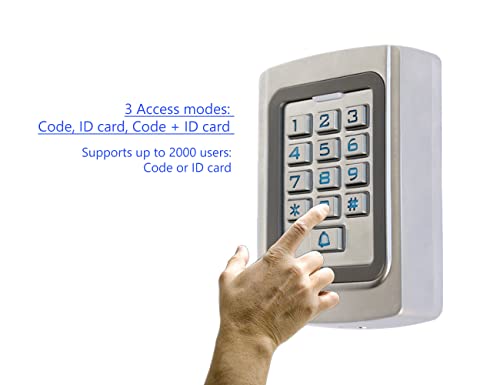

Three working modes optional: “Code”, “ID Card”, “Code + ID card”. The keypad supports maximum to 2000 users – Code or ID card . You’ll be able to program more standard ID cards to the keypad if needed.
We guarantee to answering your whole questions within 24 hours.

2.Technical specifications:
Rated Input Voltage: 12-24VDC
Standby Current: 30mA
Operation Current: 60mA
Load of the Output Relay: 2A 30VDC
Maximum Users: 2000
Ambient temperature: -49-140°F
Format of the Access Code: 4 digits Code

3.Contents:
1 x Wired Keypad;
1 x User Manual;
1 Set of Installation Accessories

IDEAL FOR OUTDOOR USE – The PCB of the keypad is sealed in the epoxy resin completely to be waterproof.
WIDE RANGE INPUT – The keypad will also be powered by either 12VDC or 24VDC.
UNIVERSAL FOR GATE OPENER AND DOOR OPENER – The dry contact output makes it’s compatible with most brands of gate opener, garage door opener and access regulate systems. The output relay time is adjustable from 0.2 to 99 seconds.
BACKLIGHT OF THE KEYS for easy operation at night. A sensor is used for anti-vandal, an optional alarm will also be added to the keypad for warning when tampering.
SUPPORTS 3 WORKING MODES – “Code”, “ID Card”, “Code + ID card”. Up to 2000 codes or ID cards will also be programmed to the keypad.
