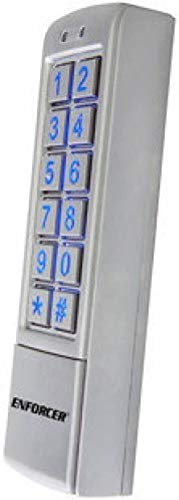

Seco-Larm SK-2323-SPQ Mullion-Style Weatherproof Digital Access Keypad; 12~24 VAC/VDC operation; 1,010 Users (Output #1: 1,000 users/Output #2: 10 users); 2 Form C relays, each rated 1 Amp @ 30VDC

Seco-Larm SK-2323-SPQ Mullion-Style Weatherproof Digital Get admission to Keypad; 12~24 VAC/VDC operation; 1,010 Users (Output #1: 1,000 users/Output #2: 10 users); 2 Form C relays, Every rated 1 Amp @ 30VDC

Seco-Larm SK-2323-SPQ Mullion-Style Weatherproof Digital Get admission to Keypad; 12~24 VAC/VDC operation; 1,010 Users (Output #1: 1,000 users/Output #2: 10 users); 2 Form C relays, Every rated 1 Amp @ 30VDC; Every relay has programmable output time from 1~99 seconds or toggle

Key Features

• 2 Egress inputs and 1 door sensor input
• Backlit keys for simple middle of the night use
• 2 Multi-colored status LEDs
• All features are programmed immediately from the keypad – no need for an external programmer
• EEPROM memory protects programmed information in case of power loss
• Optical tamper sensor for added security
• Circuitry is potted with epoxy for outside use

Specifications

• Number of User Codes: As much as 1,010
• Operating Voltage: 12~24 VAC/VDC
• Current Draw- Standby: 64mA@12VDC
• Current Draw- Active: 1 Relay active 92mA@12VDC 2 Relays active 120mA@12VDC
• Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC
• Egress Inputs: 2, N.O. Ground
• Door Sensor Input: N.C. Ground
• Tamper Sensor: Optical
• Operating Temperature: -4°~122° F (-20°~50° C)
• Keypad LED Life: 60,000 hours (over 6.8 years)
• Weight: 11-oz (312g)
• Dimensions: 6″ x 1-3/4″ x 15/16″ (152x44x24 mm)
• Proximity Reader Frequency: 125kHz
• Proximity Reader Distance: 1-15/16″ (50 mm)

Every relay has programmable output time from 1~99 seconds or toggle
Output #2 may also be programmed to be used with a doorbell
3 Programmable Get admission to modes for Output #1: Card Only, Card or Code, and Card with Code
Output #2 can have either a card or a code programmed for Every user
IP65 weatherproof rating, rugged aluminum construction, Built-in proximity card reader
