Wiegand 26 bit Outdoor Install Waterproof IP68 Metal Case RFID & Password Keypad Single Door Stand-Alone Access Control

Package:
1 x Metal Keypad RFID Get admission to Controller
1 x Installation Kit
1 x User Manual

Features:
Water-resistant Degree: IP68
Metal structure design, anti-vandal
Digital backlit keyboard
Full programming from the keypad
User capacity: 2000 card user card, 2000 user password
Three strategy to open the door, card, password, card + password
Strengthen Wiegand 26 input from connection to external reader or Wiegand 26 output for connection to a controller
Adjustable door output time,alarm time,door open time
Very low power consumption (30mA)
Fast operationg speed,<20ms with 2000 users
Lock output current short circuit protection
Easy to put in and program
Built-in light dependent resistor (LDR) for anti tamper
Buili-in buzzer
Red,yellow and green LEDs display the working status

Specification Details:
Operating Voltage : DC 12V
User Capacity: 2000
Size: 120(W)x58(H)x22(D) mm
Card Reading Distance: 5~8cm
Current: <30mA (Standby); <60mA (Active)
Lock Output Load: <3A
Alarm Output Load: <20A
Operation Temperature: -45C~60C
Operating Humidity: 10%~90% RH
Water-resistant: Conforms to IP68
Adjustable Door Relay time: 0~99 seconds
Wiegand Interface: Wiegand 26 bit
Wiring Connections: Electric Lock,Exit Button,External Alarm,External Reader
Compatible Cards: EM usual card (Can not Strengthen some encrypted cards,such as HID, Cobra, APCiK and so on)
Frequency: 125khz
Net Weight: Approx. 371g

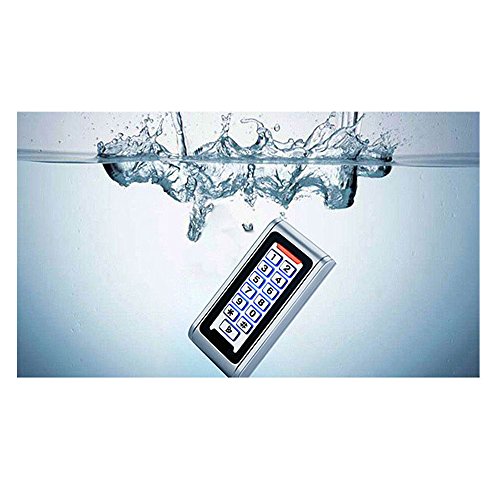

Water-resistant Structure strong adaptability, conforms to IP68 degree
Strengthen 2000 users by Card, PIN Code, Card + PIN Code
With lock relay output, protected / normal Mode, NO / NC output, Wiegand 26 input/output
Supports 125Khz EM ID card.
Stand on my own device, with keypad, easy programming.Small and exquisite, Fashionable and Beautiful, Backlit keypad
