StarTech.com VDSL2 Ethernet Extender Kit Over Single Pair Wire, Up to 0.6mi (1km) Long Range Repeater, Replace for 110VDSLEXT

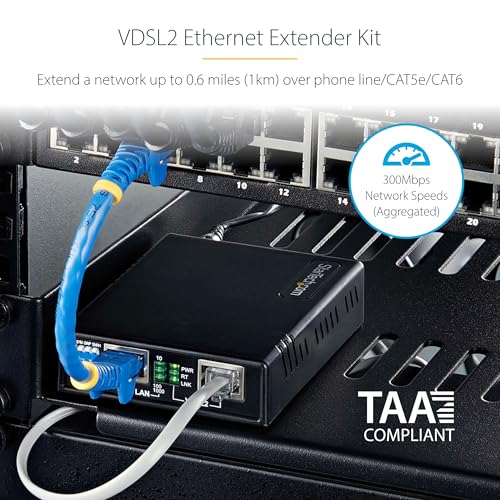

Extend a network over VDSL2 the usage of UTP, CAT5e/6 or RJ11 cabling over distances As much as 0.6mi (1km). Speeds of As much as 300 Mbps (aggregated) are to be had at shorter distances. Supports VDSL2 35b/30a/17a and features ITU-T G.993.5 G.Vectoring and G.INP technologies. The installation may also be customized by the usage of DIP switches. Choose from Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance. The Gigabit Ethernet Extender has LEDs that supply a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to observe and assess network connectivity. The Long-Range LAN Extender may also be mounted on a wall the usage of the included hardware or installed on a shelf or other surface. The kit includes two power adapters, one for every VDSL Extender. The extender works with third-party VDSL2 IP DSLAMs in CPE (RT) mode and extends the network for applications such as remote place of work or branch locations or IP-based video solutions. The 802.1Q VLAN tag transparency preserves VLAN-tagged traffic around the extension. This product is backed for 2-years and free lifetime 24/5 multi-lingual technical assistance.

VDSL2 EXTENDER: Extend a network over VDSL2, the usage of UTP/single pair wire, CAT5e/6, or phone line cabling; As much as 0.6mi (1km); As much as 300Mbps (aggregated) at shorter distances; Supports VDSL2 35b/30a/17a, ITU-T G.993.5 G.Vectoring, and G.998.4 G.INP standards

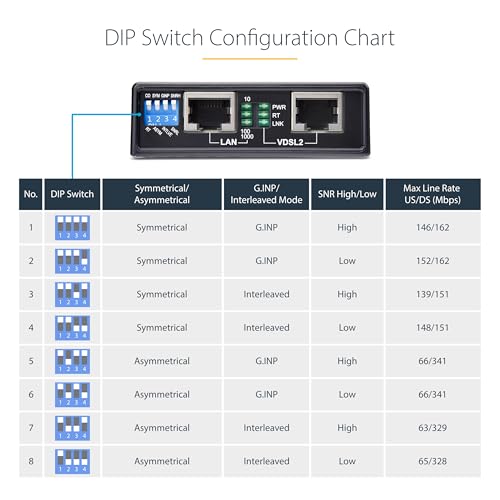

8 PROFILE CONFIGURATIONS: Customize the installation with DIP switch selectable settings; Choose from Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance

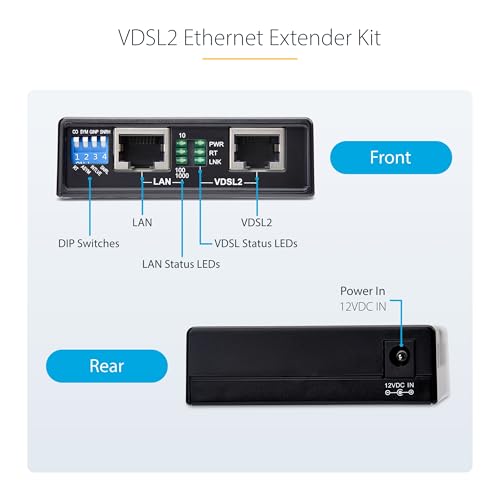

INTUITIVE INDICATORS: Gigabit Ethernet Extender features four LEDs that supply a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to observe and assess network connectivity

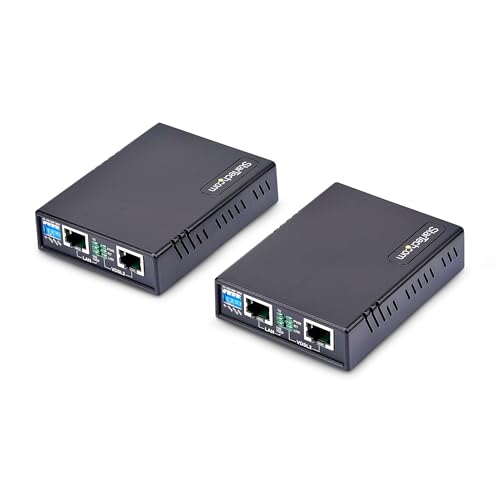

VERSATILE MOUNTING OPTIONS: TAA-compliant Long Range LAN Booster may also be mounted on a wall the usage of the included mounting hardware, or placed on a shelf or other surface; Includes two power adapters, one for every VDSL Extender unit

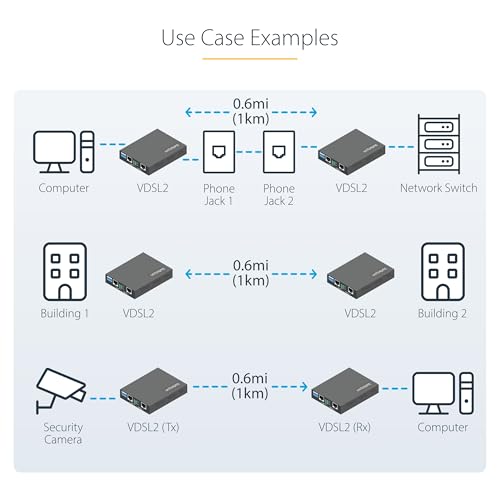

APPLICATIONS: Works with third-party VDSL2 IP DSLAMs in CPE (RT) mode; Extends a network to remote areas, supporting applications such as video surveillance/digital signage; 802.1Q VLAN tag transparency preserves VLAN-tagged traffic around the extension
