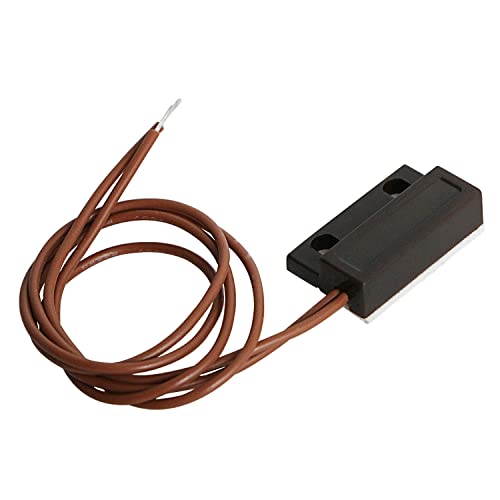

Aoje-Link RC-39 NO Wired Magnetic Door Switch Window Sensor Alarm for Home Security Access Control and Burglar Alarm Systems Black 1pcs

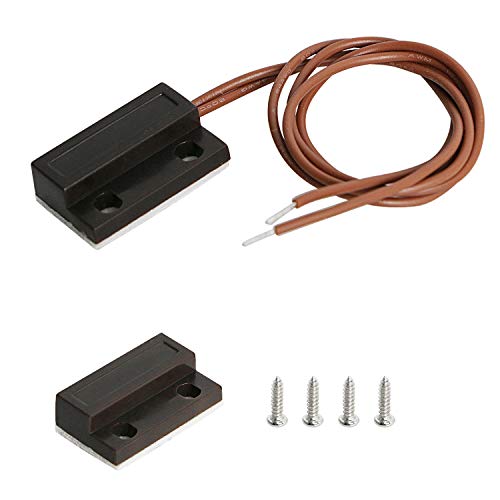

Product Content: 1 x RC-39 Recessed Magnetic Door Switch; Color: Black, Material: ABS.

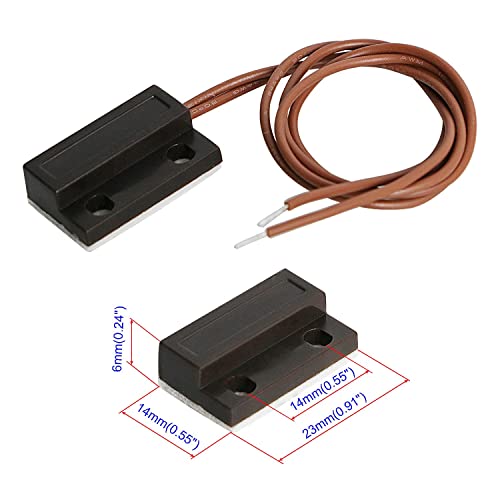

Size: 23mm x 16mm x 6mm/0.91″ x 0.63 x 0.24″ (L*W*H).
Contact Type: NO (Normally Open), Actuation Distance: 15-25mm, Max Voltage: 100V, Max Current:0.5A.
$9.90
Magnetic Reed Switch Alarm Surface Mount Wired Contact Sensor Connect to the alarm.
Sharp alarm will be heard when any person opens window or door in arming status,The reed switch is an electrical switch operated by an applied magnetic field. Keep your house secure with this door security alarm.
1.By screws or double-sided tapes to install, Anti-fire ABS.
2.The reed switch is an electrical switch operated by an applied magnetic field.

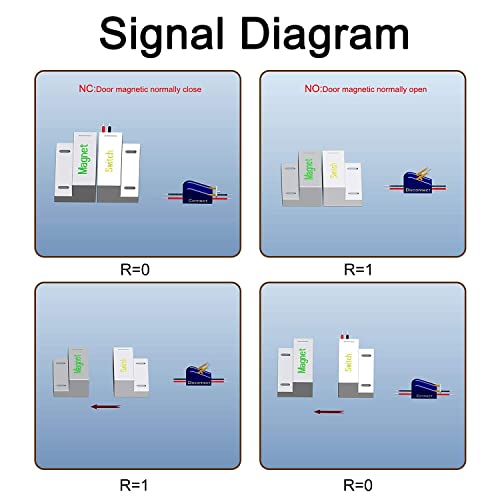

3.Switch Type: NO means Usually Open: when the magnet separate, the circuit isn’t conductive( light on ); When the magnet together, the circuit is conductive ( light off ).
4.Work as an anti-theft alarm, ideal for wood door and window.
Specification:
Model: RC-39
Material: ABS
Color: Black
Max Power: 10W
Max Voltage: 100V
Max Current: 0.5A
Min Temperature: -22℉
Max Temperature: 140℉
Actuation Distance: 15-25mm
Contact Type: NO
Size(Approx): 23 x 16 x 6mm(L*W*H)
Package Content:
1pair x Magnetic Door Switch.
Note:
1: Please install on the back of the door, The door and window magnet will have to be installed at the closed position of the door/window/drawer.
2: The magnet part is installed on the movable door and window. The switch part is installed on the fixed door and window frame. The switch part and the magnet part will have to be aligned as much as conceivable.
3: The door magnet will have to be away from the strong magnetic field interference source such as a transformer. In a different way, the working characteristics of the door magnet will be changed and conceivable unsuitable actions.
4: Door magnetic can only provide switching signal, can not be directly loaded, wish to be connected with the power supply or lamps and lanterns into a set of system.
Product Content: 1 x RC-39 Recessed Magnetic Door Switch; Color: Black, Material: ABS.
Size: 23mm x 16mm x 6mm/0.91″ x 0.63 x 0.24″ (L*W*H).
Contact Type: NO (Usually Open), Actuation Distance: 15-25mm, Max Voltage: 100V, Max Current:0.5A.
Door contact sensors used with commercial or residential access systems and all security access and burglar alarm system.
Adopt double-sided tape design, with mounting screws, two kinds of installation options for simple installation.
Specification: Aoje-Link RC-39 NO Wired Magnetic Door Switch Window Sensor Alarm for Home Security Access Control and Burglar Alarm Systems Black 1pcs
|
