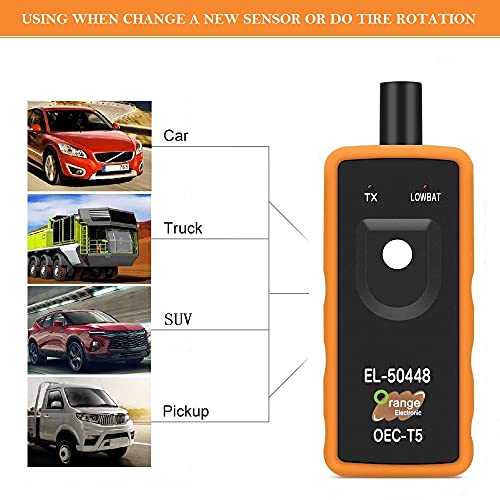

EL-50448 Orange TPMS OEC-T5, GM TPMS Relearn Reset Sensor Activation Tool, Tire Pressure Monitor TPM TPS Relearn Tool for GM Series Vehicle

Specification:

Hardware: OEC-T5

Software: EL-50448

Certification: CE

Material: Top quality plastic & metal

How to use EL-50448 TPMS relearn tool:

Step 1 – Enter learning mode

Set the gearshift lever to “P”. Put the ignition switch to “ON”. Enter the interface of tire pressure displayed by DIC. DIC shows “Press Set / Ctrl to relearn”. Press “Set / Ctrl”. Turn signal will light for 3 seconds and the horn will beep twice to enter the learning mode.

Step 2 – Read tire pressure sensor information

Start from the front-left wheel. Hold the EL-50448 antenna up against the valve core, close to the rim of the tire sidewall. Start El-50448 tire pressure tool by pressing the start button. Succeed in reading the tire pressure sensor information when the horn beeps once.

Step 3 – Same method to read other tires’ pressure information

Follow the instructions above to read tire pressure of the front-right, rear-right, rear-left wheels. Turn signal will light for 3 seconds and the horn will beep twice when the learning is complete.

Packing list:

1 x EL-50448 Tool

Please kindly note: The package does not include charger and battery.

【EL-50448 TPMS Relearn Tool】: For GM series vehicles equipped with tire pressure monitoring system, a “sensor relearn procedure” should be performed after tire rotations, remote keep watch over door lock receiver module replacement or tire pressure sensor replacement. This relearn procedure will also be performed by the usage of special tool EL-50448.
【GM TPMS Reset Tool】: EL-50448 Orange OEC-T5 assist you to reprogram your tire pressure easily within just 3 steps. This TPM relearn reset tool is easy to activate the individual TPM sensor with only pressing one button.
【TPMS Sensor Activation Tool】: EL-50448 works on all General Motors products that have TPMS sensors. Please check whether EL-50448 is available for your car, see the last picture.
【How To Use】: Before the usage of this TMS relearn tool & TPS reset tool, make sure your car is in the TPMS learn mode. Hold the tool against the sidewall of the tire, near the valve core. Press learn button whilst holding the tool against the tire sidewall until hearing horn sound from the car.
【Notice】: Different vehicles may need different times to reset your entire tire sensors after rotation. 12 months guarantee, please feel free to contact us if in case you have any trouble all the way through use.
